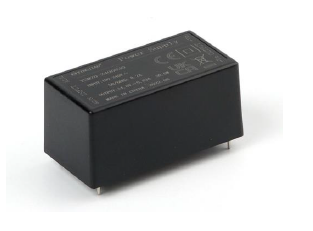

Alimentatori (5–90 W) – Serie WPR

Alimentatori da Circuito Stampato Serie WPR (5–90 W)

Soluzioni PCB Ultra-Compatte

Gli alimentatori ultra-compatti da circuito stampato della serie WPR sono la soluzione ideale per applicazioni con spazi d’installazione ridotti, dove affidabilità ed elevata densità di potenza sono requisiti fondamentali. La moderna tecnologia circuitale garantisce un’alta efficienza unita a un eccellente rapporto qualità-prezzo.

WPR Series Miniature PCB-mount power supplies for soldering into circuit boards	Input	Output			General Data
	Input voltage range AC	Rated output voltage DC	Adjustment range of the output voltage DC	Rated power	Mounting	Dimensions L x W x H
WPR-05-12	90–264 V AC	12 V DC	5.04 W	75%	Soldering assembly	46.08 x 25.78 x 21.7 mm
WPR-05-24		24 V DC	5.52 W	77%	Soldering assembly	46.08 x 25.78 x 21.7 mm
WPR-10-12		12 V DC	10.2 W	82%	Soldering assembly	46.08 x 25.78 x 21.7 mm
WPR-10-24		24 V DC	10.08 W	83%	Soldering assembly	46.08 x 25.78 x 21.7 mm
WPR-15-12		12 V DC	15.0 W	82%	Soldering assembly	52.50 x 27.2 x 24.0 mm
WPR-15-24		24 V DC	15.12 W	83%	Soldering assembly	52.50 x 27.2 x 24.0 mm
WPR-20-12		12 V DC	21.6 W	84%	Soldering assembly	52.50 x 27.2 x 24.0 mm
WPR-20-24		24 V DC	21.6 W	85%	Soldering assembly	52.50 x 27.2 x 24.0 mm
WPR-30-12		12 V DC	30.0 W	88%	Soldering assembly	69.50 x 39.0 x 24.0 mm
WPR-30-24		24 V DC	30.0 W	88%	Soldering assembly	69.5 x 39.0 x 24.0 mm
WPR-45-12		12 V DC	45.6 W	87.5%	Soldering assembly	87.0 x 52.0 x 30.0 mm
WPR-45-24		24 V DC	45.6 W	89.5%	Soldering assembly	87.0 x 52.0 x 30.0 mm
WPR-60-12		12 V DC	60 W	89.5%	Soldering assembly	87.0 x 52.0 x 30.0 mm
WPR-60-24		24 V DC	60 W	89.5%	Soldering assembly	87.0 x 52.0 x 30.0 mm
WPR-90-12	85–305 V AC	12 V DC	80.4 W	89.5%	Soldering assembly	87.0 x 52.0 x 30.0 mm
WPR-90-24		24 V DC	90.0 W	91.0%	Soldering assembly	87.0 x 52.0 x 33.0 mm
