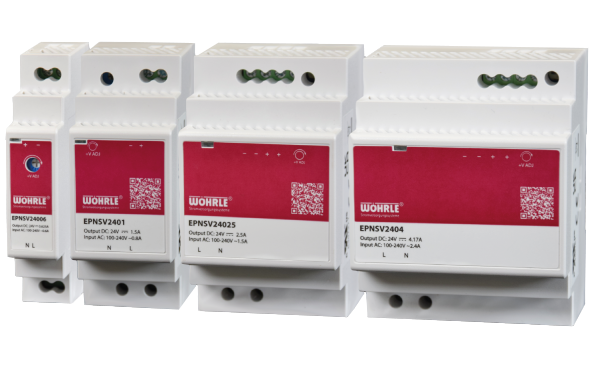

Alimentatori (15–150 W) – Serie EPNSV

Alimentatori Modulari Serie EPNSV (15–150 W)

Soluzioni Compatte per Centralini

La serie EPNSV comprende alimentatori switching monofase progettati specificamente per l’installazione in centralini di distribuzione con intaglio standard per pannelli da 45 mm. Sono realizzati in una robusta custodia di plastica chiusa con connessioni a vite dotate di protezione dal contatto accidentale (touch-protected).

EPNSV Series	EPNSV24006	EPNSV2401	EPNSV24025	EPNSV2404	EPNSV2406
Input
Input voltage range AC	90–264 V
Input voltage range DC	127–370 V
Input current @ 115 V AC	0.5 A	0.88 A	1.2 A	3 A
Input current @ 230 V AC	0.25 A	0.48 A	0.8 A	1.6 A
Output
Rated output voltage DC	24 V
Adjustment range of the output voltage DC	21.6–29 V
Rated output current	0.63 A	1.5 A	2.5 A	4.17 A	6.25 A
General Data
Temperature range	-20 to +70 °C	-30 to +70 °C			-10 to +70 °C
Efficiency	86%	89%	90%		90.5%
Dimensions W H D	18 90 58 mm	35 90 58 mm	52 90 58 mm	70 90 58 mm	150 90 58 mm
Weight	0.078 kg	0.12 kg	0.19 kg	0.27 kg	0.3 kg

EPNSV Series	EPNSV0502	EPNSV1201	EPNSV1202	EPNSV1204	EPNSV1210	EPNSV48027
Input
Input voltage range AC	85–264 V
Input voltage range DC	120–370 V
Input current @ 115 V AC	0.5 A	0.88 A	1.2 A		3 A	35 A
Input current @ 230 V AC	0.25 A	0.48 A	0.8 A		1.6 A	70 A
Output
Rated output voltage DC	5 V	12 V				48 V
Adjustment range of the output voltage DC	4.5–5.5 V	10.8–13.8 V				43.2–55.2 V
Rated output current	2.4 A	1.5 A	2 A	4.5 A	11.3 A	@ 115 V AC: 2.7 A @ 230 V AC: 3.2 A
General Data
Temperature range	-30 to +70 °C
Efficiency	80%	89%	88%	89%	90.5%
Dimensions W H D	17.5 90 54.5 mm	35 90 58.4 mm		52.5 90 58.4 mm	105 90 54.5 mm	105 90 54.4 mm
Weight	0.078 kg	0.078 kg	0.12 kg	0.19 kg	0.31 kg
