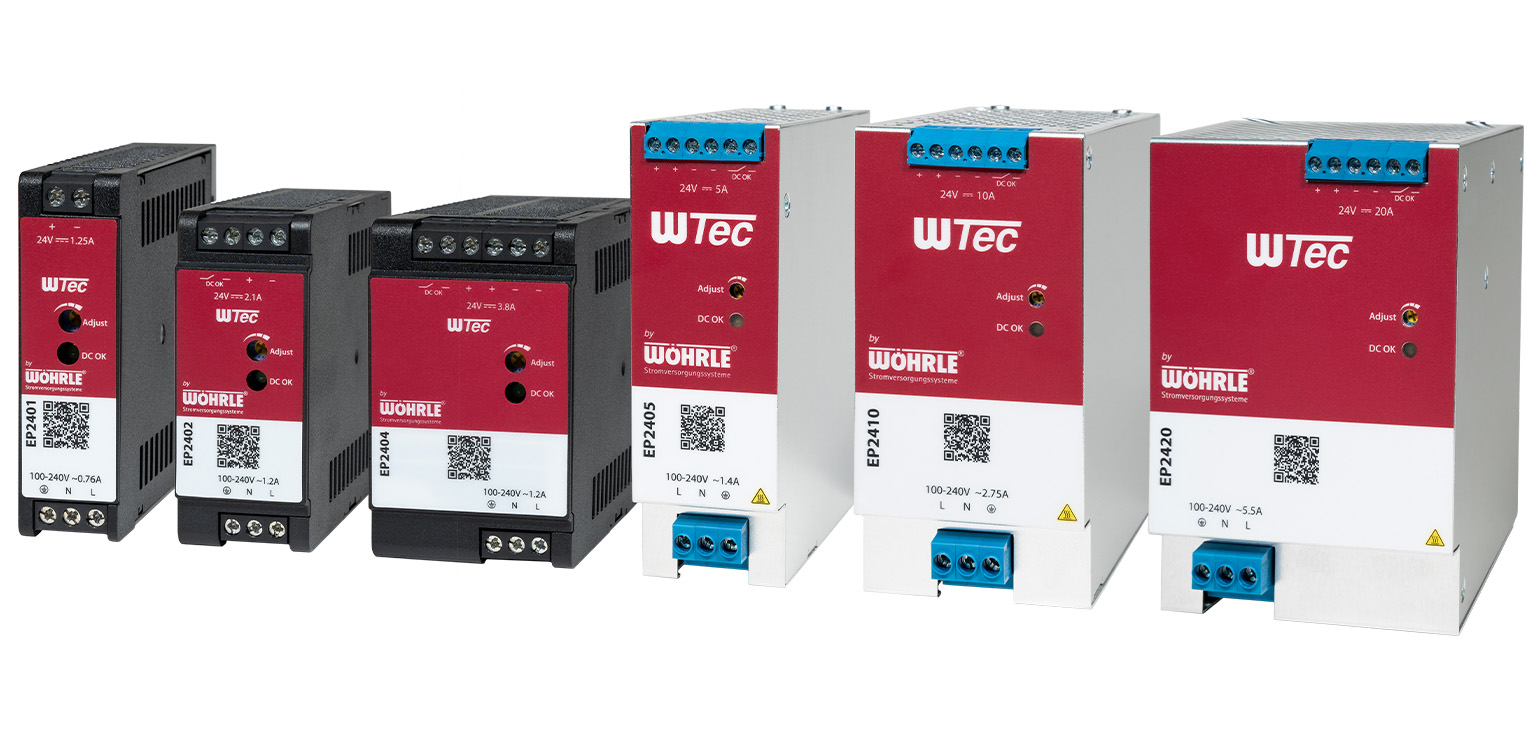

Alimentatori (30–480 W) – Serie EP

Alimentatori Monofase Serie EP (30–480 W)

Prestazioni High-End su Guida DIN

La serie EP offre alimentatori switching compatti e di fascia alta (high-end), progettati per soddisfare i più elevati standard tecnici nell’automazione industriale, nella costruzione di macchine speciali e nei quadri elettrici.

EP Series	EP2401	EP2402	EP2404	EP2405	EP2410	EP2420	EP4820
Input
Input voltage range AC	85–264 V			88–264 V			180–264 V
Input voltage range DC	120–375 V			100–375 V			254–370 V
Input current @ 115 V AC	< 0.8 A	< 0.95 A	< 1.2 A	< 1.18 A	< 2.6 A	< 5 A	< 5 A
Input current @ 230 V AC	< 0.4 A	< 0.55 A	< 0.6 A	< 0.61 A	< 1.3 A	< 2.5 A	< 2.5 A
Output
Rated output voltage DC	24 V
Adjustment range of output voltage DC	21.6–26.4 V	24–28 V					48 V
Rated output current	1.25 A / 30 W	2.1 A / 50 W	4 A / 96 W	5 A / 120 W	10 A / 240 W	20 A / 480 W	20 A / 960 W
Power Boost	–	–	–	150% / 5 sec.			130% / 5 sec.
DC OK/relay contact	–	yes
General Data
Temperature range	-20 to +70 °C			-25 to +70 °C			-30 to +70 °C
Derating	from 55 °C -3.3% / K			from 60 °C -2.5% / K
Overtemperature protection	yes
Efficiency (typ.)	88%	89%		91%	94%		93%
Dimensions W H D	21 75 89.5 mm	30 75 89.5 mm	45 75 100 mm	40 124 117 mm	60 124 117 mm	82 124 127 mm	110 124 150 mm
Weight	0.1 kg	0.18 kg	0.33 kg	0.58 kg	0.84 kg	1.2 kg	2.47 kg
