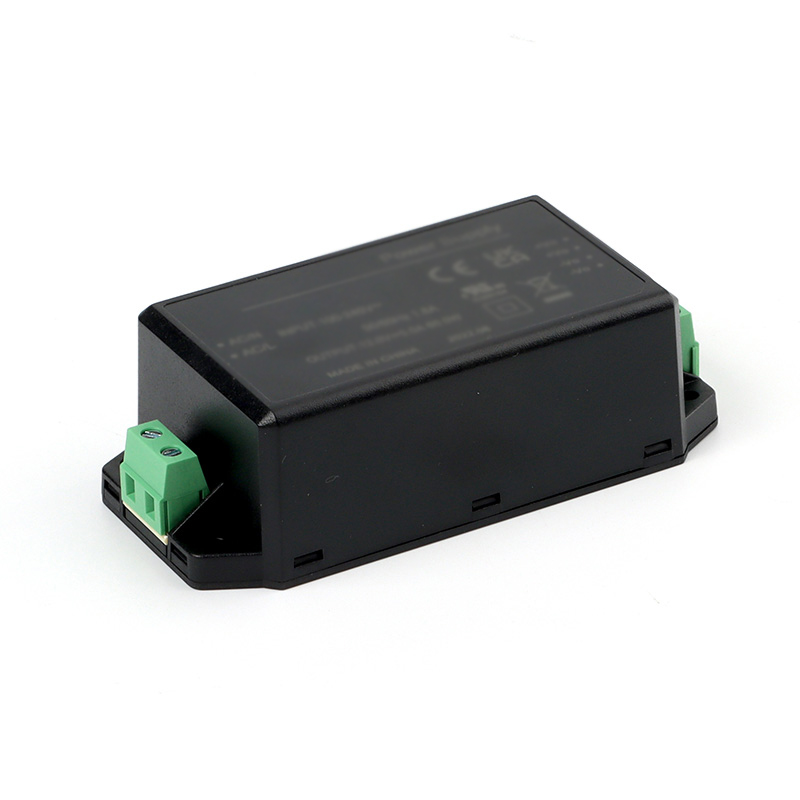

Alimentatori (30–90 W) – Serie WPR-ST

Alimentatori Serie WPR-ST (30–90 W)

Moduli PCB con Morsetti a Vite

La serie WPR-ST comprende alimentatori ultra-compatti da circuito stampato progettati per garantire prestazioni affidabili anche in ambienti con forte riduzione dello spazio. Tecnologia all’avanguardia e lavorazioni di alta qualità assicurano un’alimentazione stabile e un eccellente rapporto qualità-prezzo per applicazioni professionali.

WPR-ST Series Miniature PCB switch-mode power supplies with screw terminals	Input	Output			General Data
	Input voltage range AC	Rated output voltage DC	Adjustment range of the output voltage DC	Rated power	Mounting	Dimensions L x W x H
WPR-30-12-ST	90–264 V AC	12 V DC	30 W	88%	Screw terminals	91.0 x 39.5 x 28.5 mm
WPR-30-24-ST		24 V DC	30 W	88%	Screw terminals	91.0 x 39.5 x 28.5 mm
WPR-45-12-ST		12 V DC	45.6 W	87.5%	Screw terminals	87.0 x 52.0 x 30.0 mm
WPR-45-24-ST		24 V DC	45.6 W	89.5%	Screw terminals	87.0 x 52.0 x 30.0 mm
WPR-60-12-ST		12 V DC	60.0 W	87.5%	Screw terminals	109.0 x 52.0 x 33.5 mm
WPR-60-24-ST		24 V DC	60.0 W	90%	Screw terminals	109.0 x 52.0 x 33.5 mm
WPR-90-12-ST	85–305 V AC	12 V DC	80.4 W	89.5%	Screw terminals	109.3 x 52.7 x 33.9 mm
WPR-90-24-ST		24 V DC	90.0 W	91%	Screw terminals	109.3 x 52.7 x 33.9 mm
